SIMGOT SuperMix 5 1BC+1DD+2BA+1MP Kulakiçi Kulaklık

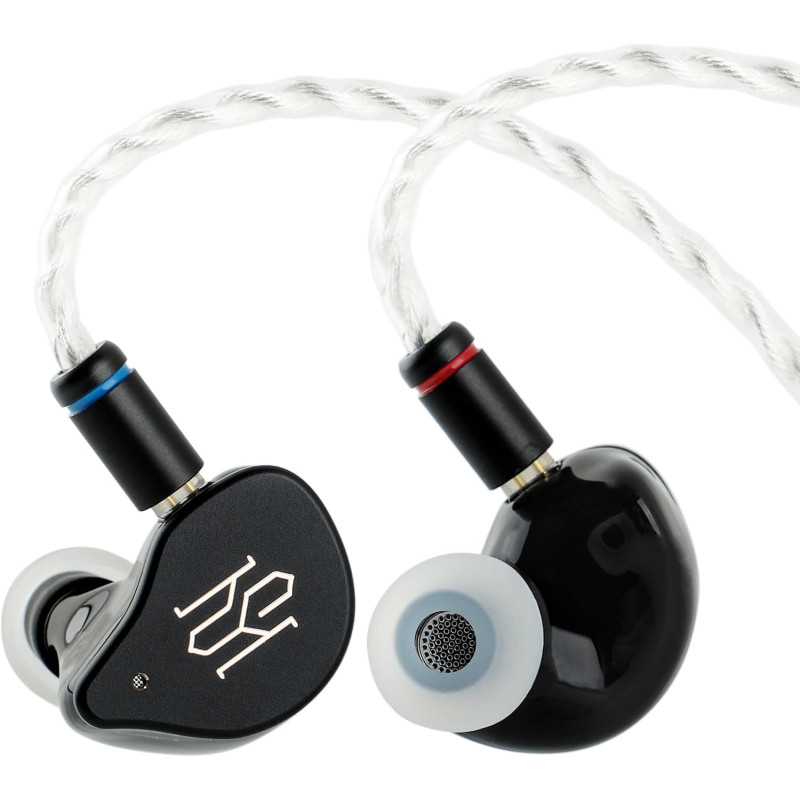

SIMGOT SuperMix 5 1BC+1DD+2BA+1MP in Ear Monitor Bone conduction HiFi Earphone with Detachable Silver-Plated OCC Litz Cable

Search Term

Hybriddriverearphoneplanar magnetic headphoneshigh-resolution audio earphone gaming earphonedetachable cable headphones3.5mm/4.4mm headphonesresin 3D-printed headphonesfour-way earphoneSimgot Supermix4 Simgot EM6L Simgot ET142

Five-in-one Matrix Acoustic Architecture:

SuperMix5 employs a luxurious five-driver configuration of ‘dynamic driver x 1+balanced armature x 2+micro planar driver x 1+bone conduction x 1’. This includes an 8mm DLC flexible surround dynamic driver, delivering robust and detailed bass. Paired with two large-volume balanced armature drivers for the midrange and a planar magnetic driver, it significantly enhances resolution and extension. A custom 10mm bone conduction driver, designed for mid-to-low frequency compensation, enhancing bass texture and response speed. The synergistic operation of these multiple drivers achieves a natural tonal fusion.

Custom Coil Bone Conduction Technology:

SuperMix5 incorporates a custom coil bone conduction driver. This converts electrical audio signals into mechanical vibrations, which are transmitted directly to the inner ear via bony structures such as the skull. Compared to conventional “air conduction”, bone conduction bypasses the air-transmission pathway through the outer and middle ear, stimulating the inner ear directly via skeletal vibration. Its effective frequency response spans 200Hz-7kHz, significantly enhancing low-frequency texture, response speed, and subtle dynamic detail.

Scientific Tuning and Independent Acoustics:

Through precision-engineered RC four-way crossover circuits, frequency ranges are rationally allocated across distinct drivers to maximise their individual characteristics. Employing resin 3D printing technology, each driver is fitted with an independent filter duct designed to prevent interference. Combined with a multi-channel damping tuning system, this enables precise control over frequency response and phase alignment across all drivers, achieving seamless transitions, low distortion, and a natural, authentic soundstage.

Precision Craftsmanship and Scientific Design:

Employing high-precision resin 3D printing and CNC machining of metal, the design achieves a seamless fusion of a translucent black resin housing with a satin-finished metal cover. The construction fully accounts for the physical properties of resin and metal, incorporating acoustic principles to effectively suppress standing waves, resulting in a more refined and pure sound signature. SuperMix5's housing design integrates extensive 3D data from diverse ear shapes, delivering an ergonomic solution that ensures a secure and comfortable wearing experience.

High-purity OCC Silver-plated Litz Cable:

Features Litz-structured single-crystal silver-plated copper conductors to ensure high-fidelity signal transmission, enhancing sound separation and transparency. Supports 0.78mm 2-pin detachable cable with interchangeable 3.5mm/4.4mm plugs. Referencing the H-2019 frequency response curve, the SuperMix5 excels in both audio-visual and gaming applications, delivering precise sound reproduction. Its robust bass and clear detail satisfy demands for entertainment and competitive gaming.

Product Specifications

Model: Simgot SuperMix 5

Driver Configuration (Per Side) : Bone conduction x 1 + dynamic driver x 1 + balanced armature x 2 + micro planar driver x 1

Dynamic Driver: Specially crafted DLC flexible surrounded low-frequency driver

Impedance: 19Ω ±15% (@1kHz)

Sensitivity: 120 dB/Vrms (@1 kHz)

Frequency Response: 8Hz–40kHz

Effective Frequency Response: 20Hz–20kHz

Connector: 0.78mm 2-pin

Housing Process: High-precision resin 3D printing

Cable Material: Litz-structured high-purity silver-plated single-crystal copper cable

Audio Plug: 3.5mm/4.4mm interchangeable plugs
